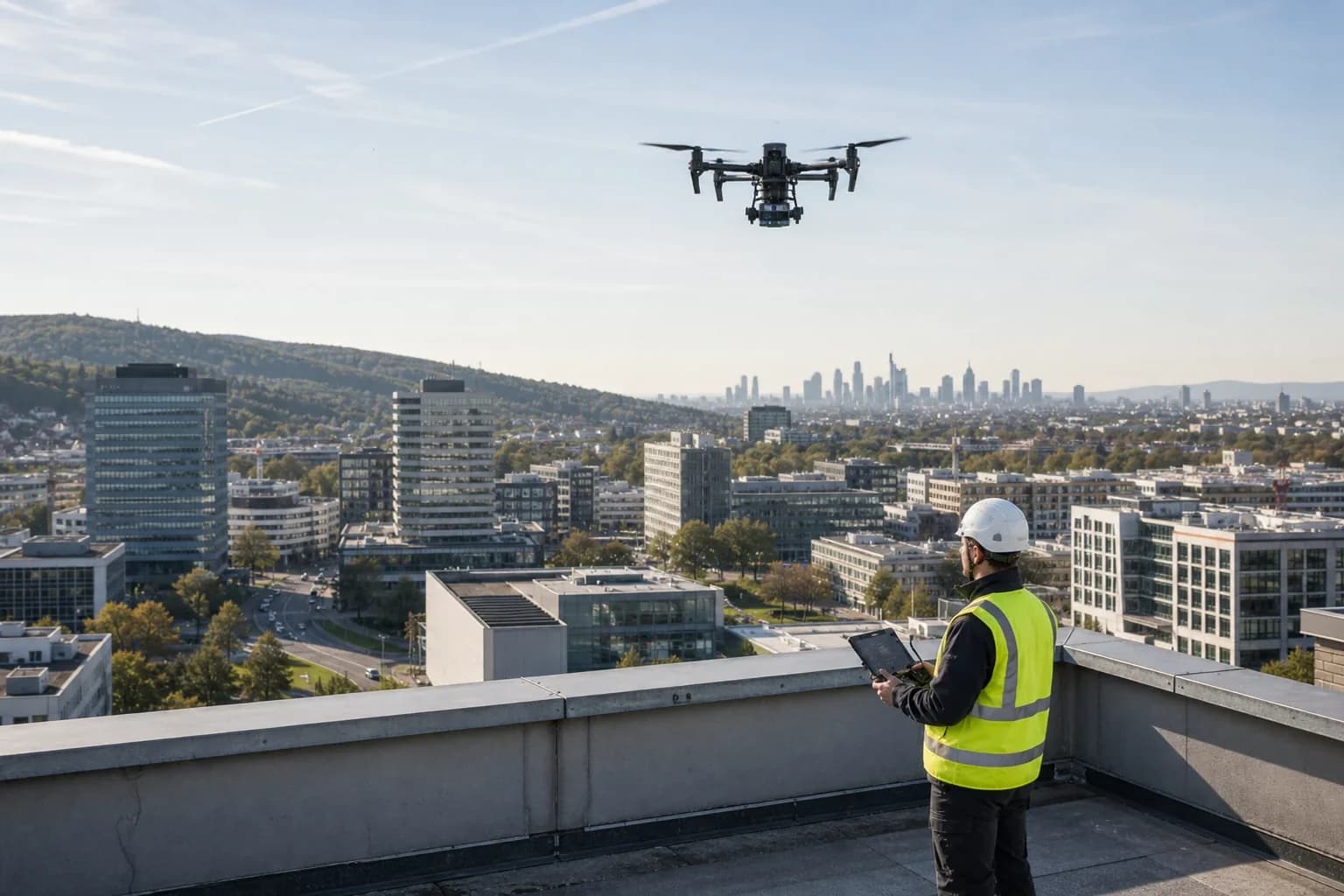

Drone surveying
Eschborn.
On-site flight, orthophoto, 3D model and measurements as a checked data basis.
- On-site service in Eschborn and surrounding areas
- Address-specific airspace and feasibility check
On-site flight50.1433° N · 8.5710° E35 km from baseManually checked
- 35km
- from our Nierstein base
- 7
- areas covered in the city
- 8
- nearby places also covered
- 1
- contact for flight, clearance and model
On site in Eschborn
3D surveying for the concentrated business areas of Eschborn
Instead of a photo album, you receive a measurable data product: cleanly captured, manually checked and exported for your planning workflow.
Read local details and clearance notes
Eschborn concentrates many workplaces in compact office and commercial areas. For refurbishment, technical roof design or infill, aerial capture provides a fast overview of buildings, rooftop equipment and outdoor areas.
In Gewerbe Süd, Helfmann-Park and Camp Phönix Park, accurate as-built models are useful for facades, flat roofs, building services and early solar design. The point cloud can enter existing CAD or BIM workflows directly.
For Niederhöchstadt and smaller existing buildings, we add targeted oblique imagery to the area-wide capture so dormers, parapets and less visible facade areas remain complete.
On-site flight
Check the site, clear the airspace, capture safely.
Processing
Orthophoto, 3D model, point cloud or CAD export.
Deliverables
Survey deliverables for projects in Eschborn
01
Measurable 3D model
A georeferenced and manually checked building model for office quarters, commercial roofs and infill development, ready for use without rebuilding the...
02
Georeferenced orthophoto
A true-to-scale aerial image of a plot, construction site or operating area in Eschborn, available as GeoTIFF for GIS and planning documents.
03
Roof and facade measurements
Areas, edges, slopes and heights are recorded without requiring scaffolding, a lift or a roof inspection for the initial survey.
04
Point cloud for CAD and BIM
Dense LAS, LAZ or E57 point clouds for existing-condition planning, conversions and coordination on buildings and plants in Eschborn.
05
Construction progress and as-built records
Repeat flights document changes consistently and provide a clear basis for comparing planned and completed work.
06
Volumes, areas and solar inputs
Volumes, roof areas and shading can be derived from the same dataset and exported for estimating, planning or documentation.
Process
How drone surveying works in Eschborn
Four steps, one owner: from your request to the checked delivery.
- 01
Define the address and outcome
Send us the address in Eschborn, the scope and the required deliverable. We check feasibility, airspace and site access.
- 02
Prepare the capture
We plan flight lines, safety distances, ground resolution and, where required, control points or RTK/PPK for the accuracy target.
- 03
Capture on site
We fly the site in Eschborn ourselves and verify image coverage before leaving the location.
- 04
Check and deliver
After photogrammetric processing, we check geometry and completeness and provide the agreed target formats.
Coverage
Service area in and around Eschborn
We cover the full city area of Eschborn and surrounding construction, commercial and residential locations. These areas and nearby towns are part of our regional deployment planning:
Areas covered in Eschborn
- Eschborn
- Niederhöchstadt
- Gewerbe Süd
- Gewerbe West
- Gewerbe Ost
- Camp Phönix Park
- Helfmann-Park
Also in the surrounding area
- Frankfurt am Main
- Schwalbach am Taunus
- Sulzbach
- Kronberg im Taunus
- Steinbach
- Bad Soden am Taunus
- Kelkheim
- Oberursel
Why Voxelia
Why aerial measurement works for office quarters, commercial roofs and infill development
01
Capture more area in less time
Connected roofs, facades and outdoor areas in Eschborn can be documented completely in one coordinated capture.
02
Avoid hazardous access
Difficult roof edges, industrial halls and existing facades can be measured without sending staff into exposed areas for the initial survey.
03
One dataset for multiple disciplines
Orthophoto, 3D model, point cloud and measurements come from the same capture and stay consistent across design, construction and records.
Safety & compliance
One team for capture and modelling in Eschborn
- On-site service in Eschborn and surrounding areas
- Address-specific airspace and feasibility check
- Manually checked 3D and geospatial data
- One contact for capture, processing and export
- Standard CAD, GIS, BIM and solar formats
Airspace and flight clearance in Eschborn
Voxelia 3D plans the deployment from Nierstein, captures the site in Eschborn and completes the photogrammetric processing. Flight planning, data quality and delivery formats therefore stay with one team.
Every dataset is manually checked for image coverage, geometry and plausibility before delivery. The result is a usable basis for CAD, GIS, BIM or solar design rather than a loose collection of photographs.
Eschborn is close to Frankfurt and is subject to the regional airspace structure depending on the address. Tall offices, transport corridors, gatherings and sensitive infrastructure are considered in the flight and safety plan. Before confirming a date, we check the exact address against the current aviation maps. Property rights, privacy, nature protection, critical infrastructure and any required clearances are handled for the specific project. We do not promise a flight without checking the address first.
FAQ
Frequently asked questions about drone surveying in Eschborn
01How much does a drone survey in Eschborn cost?
Area is only one factor. In Eschborn, the effort is also shaped by building height, rooftop equipment, dense public space, a safe launch area and required facade coverage. Once we know the address, output and accuracy target, we provide a specific quote.
02Do you travel to Eschborn for the flight?
Yes. We plan the deployment from Nierstein, capture the site in Eschborn ourselves and then handle modelling, quality control and export. Suitable imagery supplied by the client can also be processed.
03Does a drone flight in Eschborn require a permit?
Eschborn is close to Frankfurt and is subject to the regional airspace structure depending on the address. Tall offices, transport corridors, gatherings and sensitive infrastructure are considered in the flight and safety plan. We therefore check the exact address and operating conditions before confirming a flight date.
04How accurate is the result?
Achievable accuracy depends on the site, flight height, overlap, georeferencing and visibility. For higher requirements we plan control points or RTK/PPK and agree the target before capture.
05Which files are delivered?
Depending on the project, we provide a 3D model, orthophoto, point cloud, measurements, volumes and CAD or BIM exports such as GeoTIFF, LAS/LAZ/E57, DXF/DWG, IFC, OBJ or GLB.
06Is the method suitable for larger commercial and construction sites in Eschborn?
Yes. office quarters, commercial roofs and infill development benefit from area-wide, repeatable capture. Flight sections, ground resolution and deliverables are tailored to the size and intended use.
